Generic Messenger

Set Up a Generic Messenger

Currently, built-in messengers are only provided to send messages via Twilio or email. If you need to connect to a messaging provider other than Twilio, whether you want to send SMS messages or use a different transport layer such as push notifications, you can use the Generic messenger configuration.

The generic messenger allows for a simple JSON REST API integration which allows you to receive a message from FusionAuth to an arbitrary URL. The Generic Message Receiver at this URL may then make an API call to any third party messaging provider.

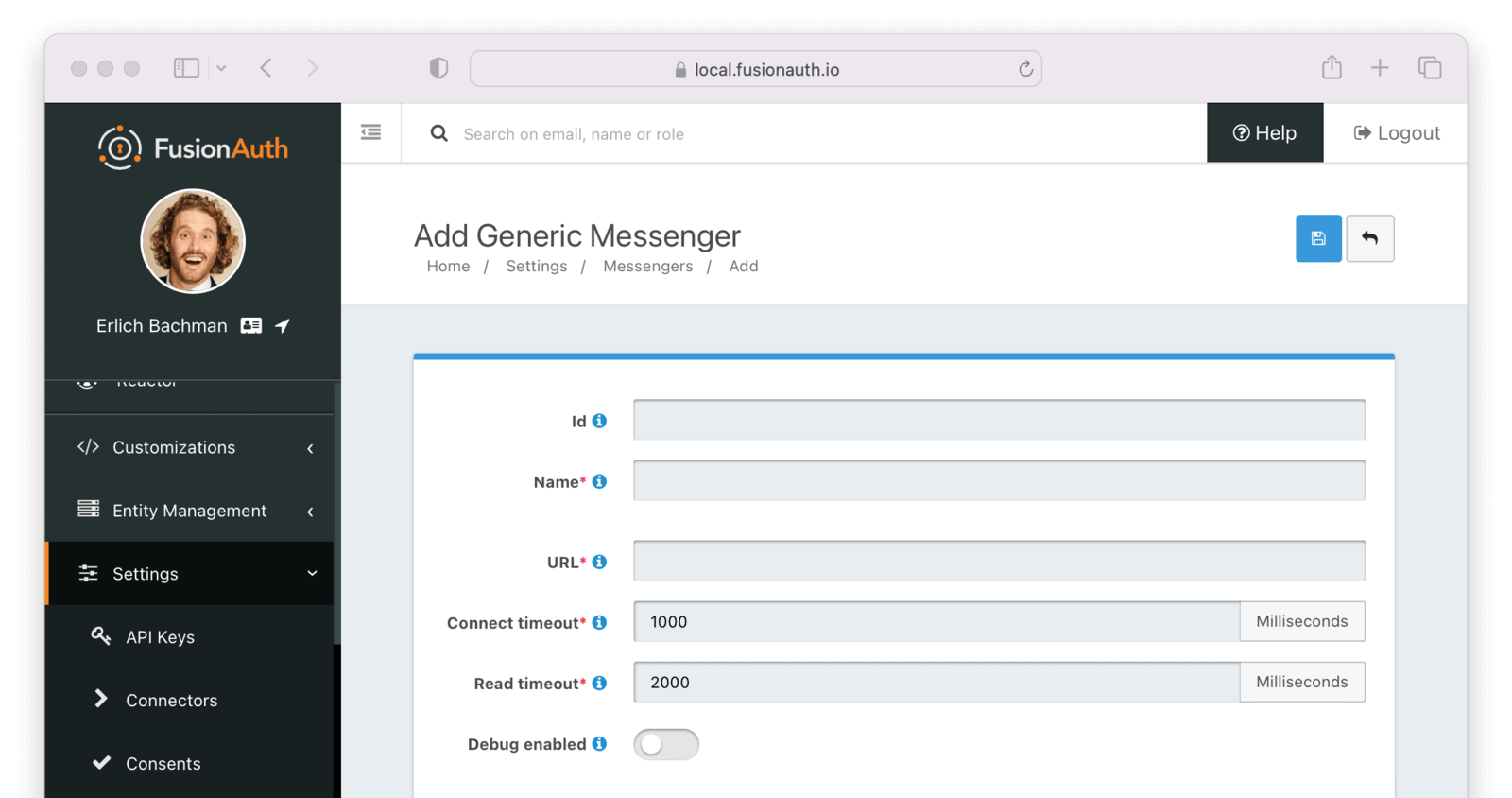

To create a new generic messenger, navigate to Settings -> Messengers. Click Add Generic Messenger from the dropdown in the upper right.

Add Generic Messenger

Complete the following fields:

Form Fields

Security

Form Fields

Headers

Form Fields

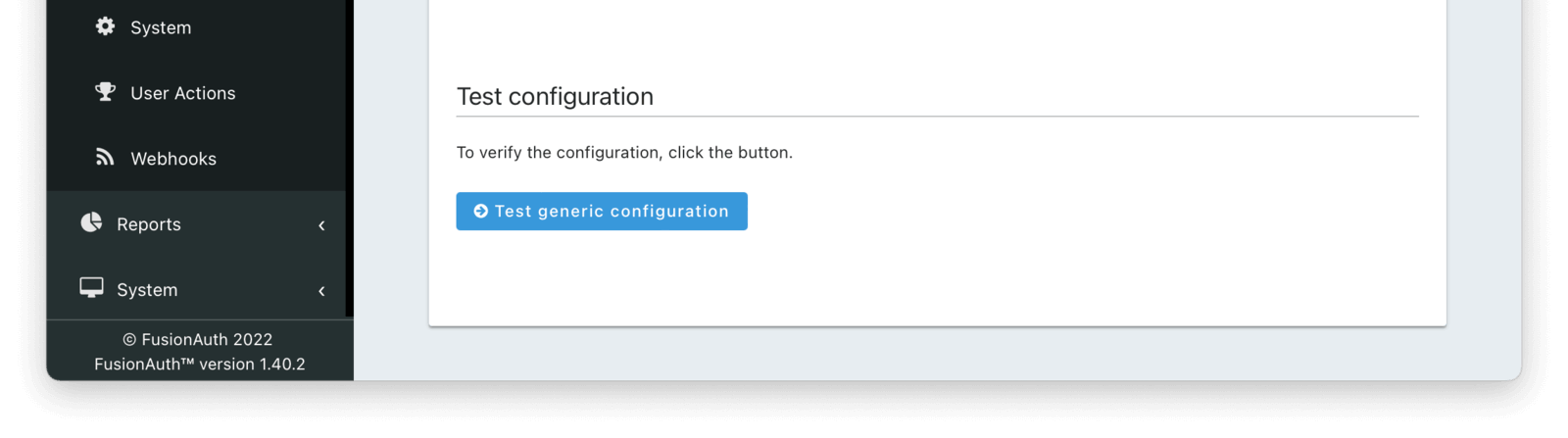

Testing Your Configuration

You also can test your generic messenger configuration. By hitting Test generic configuration FusionAuth will fire a JSON message to the messenger to ensure everything is set up correctly.

Writing the Generic Message Receiver

You need to write a server side component, a receiver, which will be deployed at a URL to consume the message sent from FusionAuth. At that point, it can proxy the request to any third party messaging service. In other words, a FusionAuth Generic Messenger is a thin coordination layer between FusionAuth and other messaging services. An application with the proper permissions, code and configuration to relay a message must exist at the configured URL. This receiver component may be written in any language that can consume a JSON message.

The request to your endpoint will be delivered as JSON. When your application receives this message from FusionAuth, it should take whatever steps necessary to send the message, such as:

• call into a SDK provided by the third party
• make an API request to a vendor provided endpoint
• call multiple internal APIs
• anything else that may be required

Request

Example Message Payload JSON

{
  "phoneNumber": "3035551212",
  "textMessage": "Two Factor Code: 111111",
  "type": "SMS"
}

Response

If the message was processed successfully, return a status code in the 200 to 299 range. No further processing will be performed by FusionAuth.

If the receiver is unsuccessful at sending the message, for whatever reason, return a status code outside of that range.

Securing the Generic Message Receiver

TLS v1.2

The first step in securing your Generic Message Receivers is to ensure that they are using TLS v1.2 or higher. You should be using a web server that is configured with a certificate from a valid certificate authority and to only receive traffic from a secure connection. We also recommend that you disable all older secure protocols including SSL, TLS 1.0 and TLS 1.1.

If you need a certificate, most cloud providers offer them or you can use LetsEncrypt to generate a certificate and ensure it is always up-to-date.

Headers

When you configure your Generic Message Receiver with FusionAuth, you should include a security header of some kind. There are two ways to define a security header:

• Add a Basic Authentication username and password under the Security

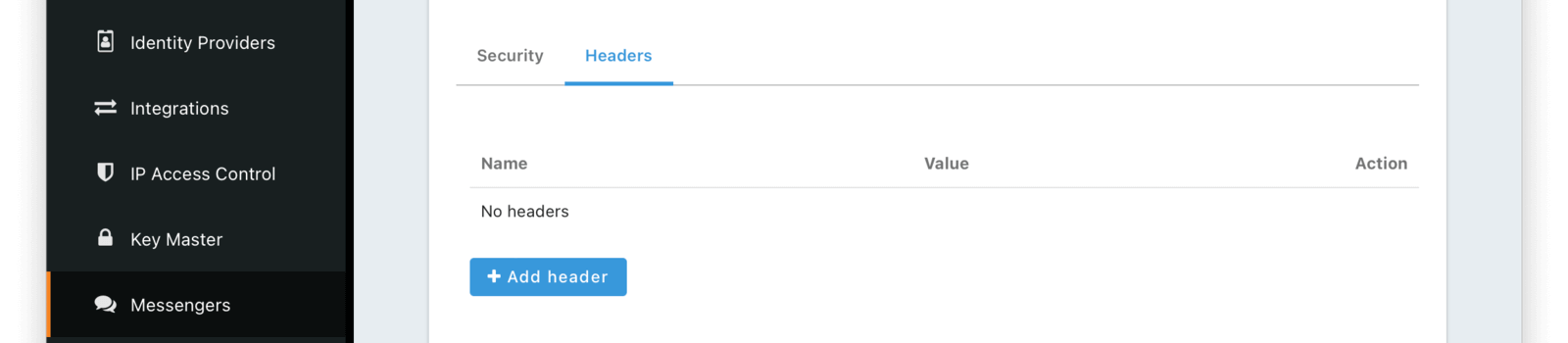

• Define an HTTP header under the Headers tab

In either case, your Generic Message Receiver code should validate the security header to ensure the request is coming from FusionAuth. Here’s some example code that validates an Authorization header:

Example Generic Message Receiver

router.route('/fusionauth-generic-messenger').post((req, res) => {
  const authorization = req.header('Authorization');
  if (authorization !== 'API-KEY') {
    res.status(401).send({
      'errors': [{
        'code': '[notAuthorized]'
      }]
    });
  } else {
    // process the request
  }
});

Certificates

You may provide an X.509 certificate to use with your Generic Message Receiver. This must be an SSL certificate in PEM format. It is used to establish a TLS connection to the Generic Message Receiver endpoint. Use this option if FusionAuth cannot connect to your Generic Message Receiver without the certificate.

Providing this certificate will build a custom SSL context for requests made for the Generic Message Receiver. Therefore, any other JDK keystores and certificate authority chains will be bypassed for this request.

Firewalls

In addition to using TLS and a security header, you might also want to put a firewall in front of your Generic Message Receiver. In most cases, this firewall will only allow traffic to your Generic Message Receiver that originated from your FusionAuth instance. Depending on how you are hosting your Generic Message Receiver, you might be able to lock down the URL for your Generic Message Receiver specifically. You might also leverage an API gateway or a proxy to ensure that only traffic coming from FusionAuth is routed to your Generic Message Receiver. The exact specifics of deploying and configuring a Firewall are outside the scope of this document, but you can consult the documentation for your proxy, API Gateway or hosting provider to determine how to manage it.

As an example, you can configure an AWS Application Load Balancer so that traffic coming from the IP address of your FusionAuth servers with a URL of https://apis.mycompany.com/fusionauth-generic-messenger is routed through. You can then configure the Application Load Balancer so that all other traffic to that URL is rejected.

Controlling Traffic with a Proxy

Since version 1.31.0, FusionAuth can be configured to send all outbound HTTP traffic, including that from a Generic Message Receiver, through a proxy. This allows you examine any messages sent from FusionAuth. You can audit them, only allow connections to certain hosts, or otherwise modify them.

To configure a proxy for FusionAuth outbound traffic, use the proxy.* configuration options.
