OpenID Connect with Azure AD

Configure OpenID Connect with Azure Active Directory/Microsoft Entra ID

Once you have completed this configuration you may enable an OpenID Connect “Login with Azure AD” button for one or more FusionAuth Applications. See Microsoft Entra ID - Register An App Quickstart Guide as an additional reference.

Login with Azure AD

Here's a diagram of the login flow between:

  • the user
  • your application
  • FusionAuth and
  • a remote identity provider such as Azure AD
User/BrowserAppFusionAuthIdentityProviderUser Is Logged In And App Can ProceedDelivering Data And FunctionalityView Initial PageClick LoginRedirect To FusionAuth Authorization URLRequest Login PageReturn Login PageClicks On 'Login With Identity Provider'Redirect To Identity Provider Authorization URLEnter CredentialsValidate CredentialsRedirect To FusionAuth With Identity Provider Authorization CodeRequests Page, Has Identity Provider Authorization CodeExchange Authorization Code ForIdentity Provider TokenReturns Identity Provider TokenStores IdentityProvider Token, CallsLambda, Creates UserAnd Registrations (IfNeeded), GeneratesFusionAuth TokensRedirect To Redirect URI With FusionAuth Authorization CodeRequest Redirect URI, Has FusionAuthAuthorization CodeRequest FusionAuth TokensReturn FusionAuth TokensCreate Session OrOtherwise Log User InUser/BrowserAppFusionAuthIdentityProvider

Logging In Using Azure AD

Although this looks complex, the user only sees a few screens, such as the FusionAuth login screen, the Azure AD login screen, and your application.

Azure AD is Microsoft Entra ID. But the usage of Azure AD is common. In this document, wherever you see Azure AD, rest assured we mean Microsoft Entra ID as well.

Register a New Azure Active Directory Application

You will first need to login to the Azure Portal.

Once logged in, navigate to Azure Active Directory -> App Registrations -> New Registration to create a new Azure Active Directory Application.

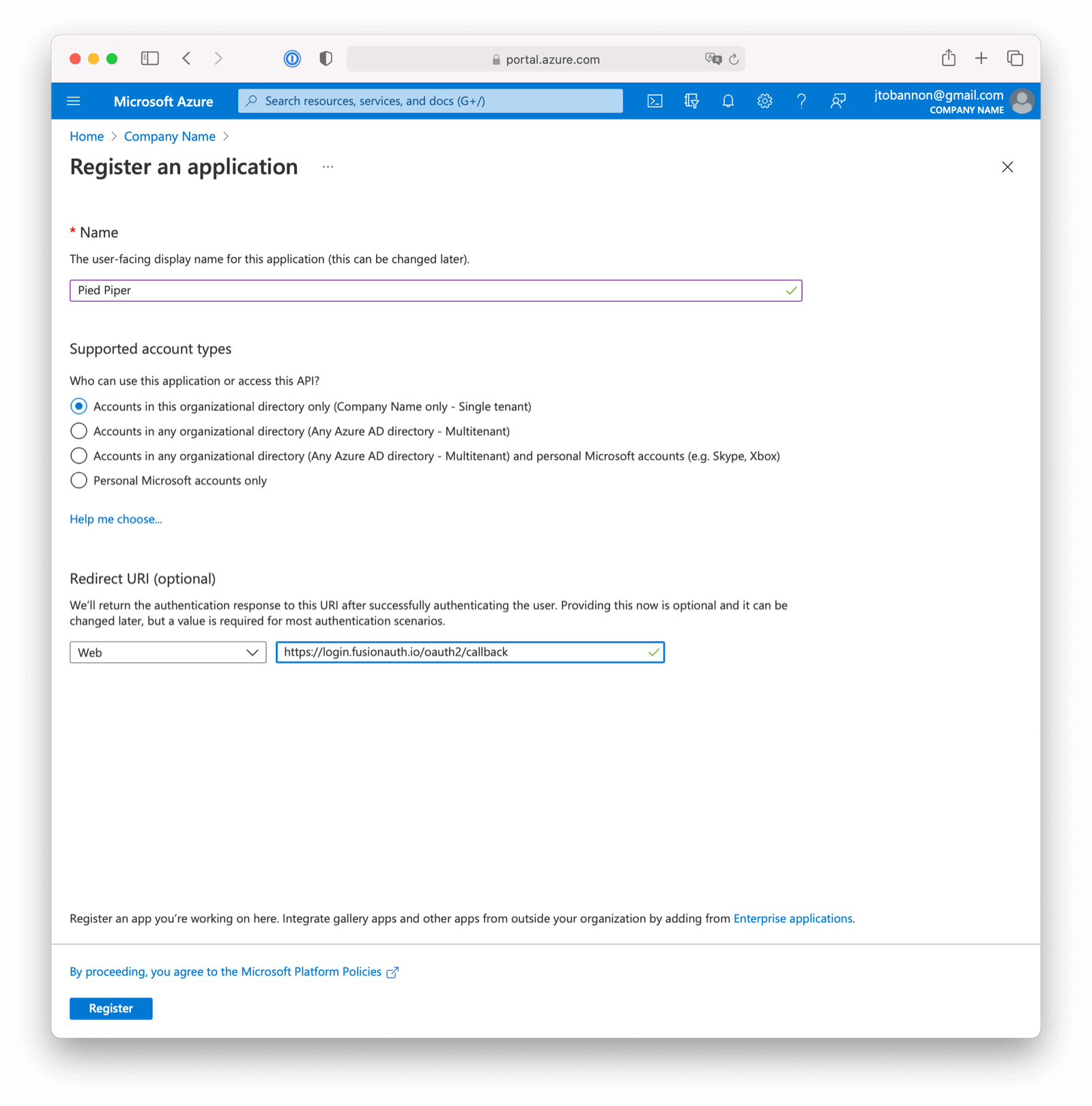

Register a new Azure AD Application

Here we have configured our application Redirect URI. If FusionAuth is running at https://login.fusionauth.io, this value should be https://login.fusionauth.io/oauth2/callback.

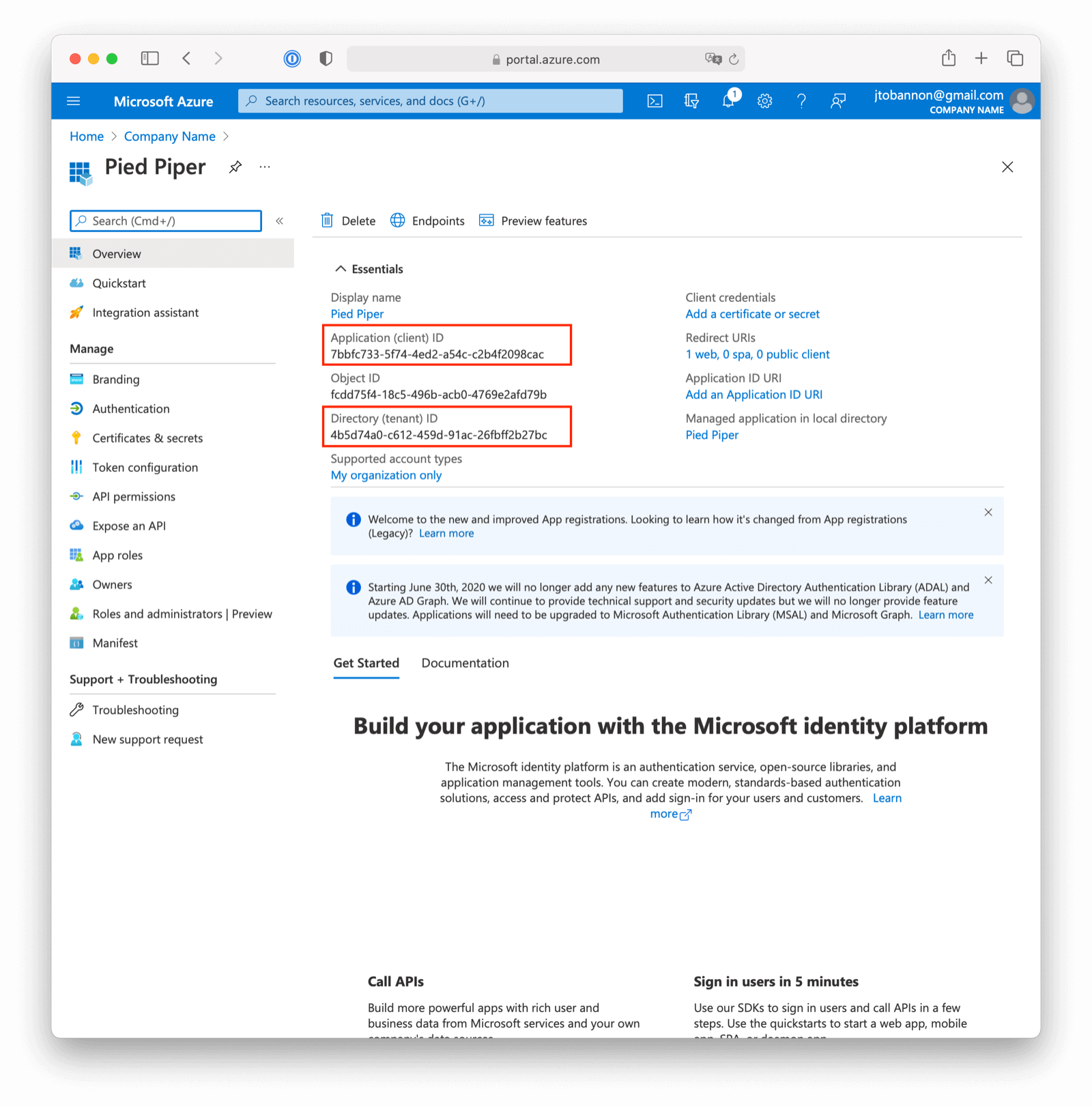

Azure AD Client ID and Tenant ID

Once the application has been created, note the Application (client) ID and the Directory (tenant) ID. These will be used respectively as the Client Id value and to construct the Issuer value in your FusionAuth OpenID Connect Identity Provider configuration.

Create a New Azure Active Directory Application Secret

Navigate to Azure Active Directory -> App Registrations -> [Your Application] -> Certificates & secrets -> New client secret to create a new Azure Active Directory Application Client Secret.

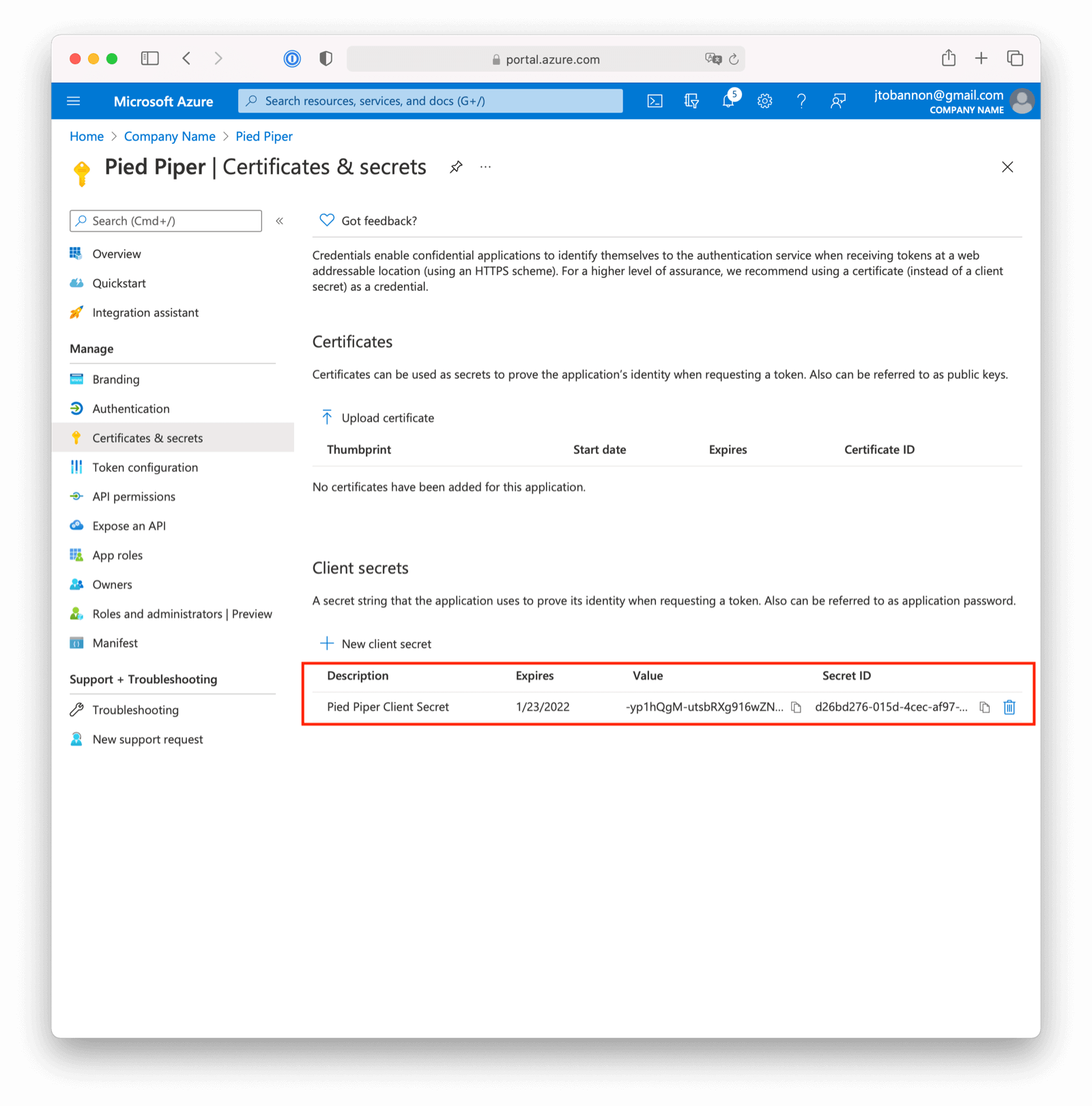

Azure AD Client Secret

Note the VALUE of the created client secret. This will be used as the Client secret value in your FusionAuth OpenID Connect Identity Provider configuration.

Configure a New FusionAuth OpenID Connect Identity Provider

To create an Azure AD Identity Provider return to FusionAuth and navigate to Settings -> Identity Providers and click Add provider and select OpenID Connect from the dialog.

This will take you to the Add OpenID Connect panel, and you’ll fill out the required fields.

You will need to set the Client authentication method to HTTP Basic authentication (client_secret_basic).

Client Id and Client secret values reference the previously noted Azure AD Application’s Application (client) ID, client secret VALUE. The Redirect URL is read only and generated for you based upon the URL of FusionAuth, this value should match the one you configured in your Azure application.

Azure AD has implemented a well-known configuration endpoint, so FusionAuth will be able to discover the necessary endpoints using a discovery document by entering the Microsoft Authority URL in the Issuer field. To see the Issuer field, you may need to toggle Discover endpoints .

The Microsoft URL may differ across national clouds, so you will need to review the Microsoft documentation to ensure you have the correct URL for your region. For the Microsoft global Azure AD service, the URLs are as follows, where {tenantId} is the Directory (tenant) ID previously noted while creating our Azure AD Application.

  • Azure AD v1 https://login.microsoftonline.com/{tenantId}
  • Azure AD v2 https://login.microsoftonline.com/{tenantId}/v2.0

You may set a Reconcile lambda to map attributes from the JWT provided by Azure AD to the FusionAuth user or registration. This is optional. Learn more about lambdas. You may also modify the Button text or Button logo if desired.

You will need to specify openid as a Scope .

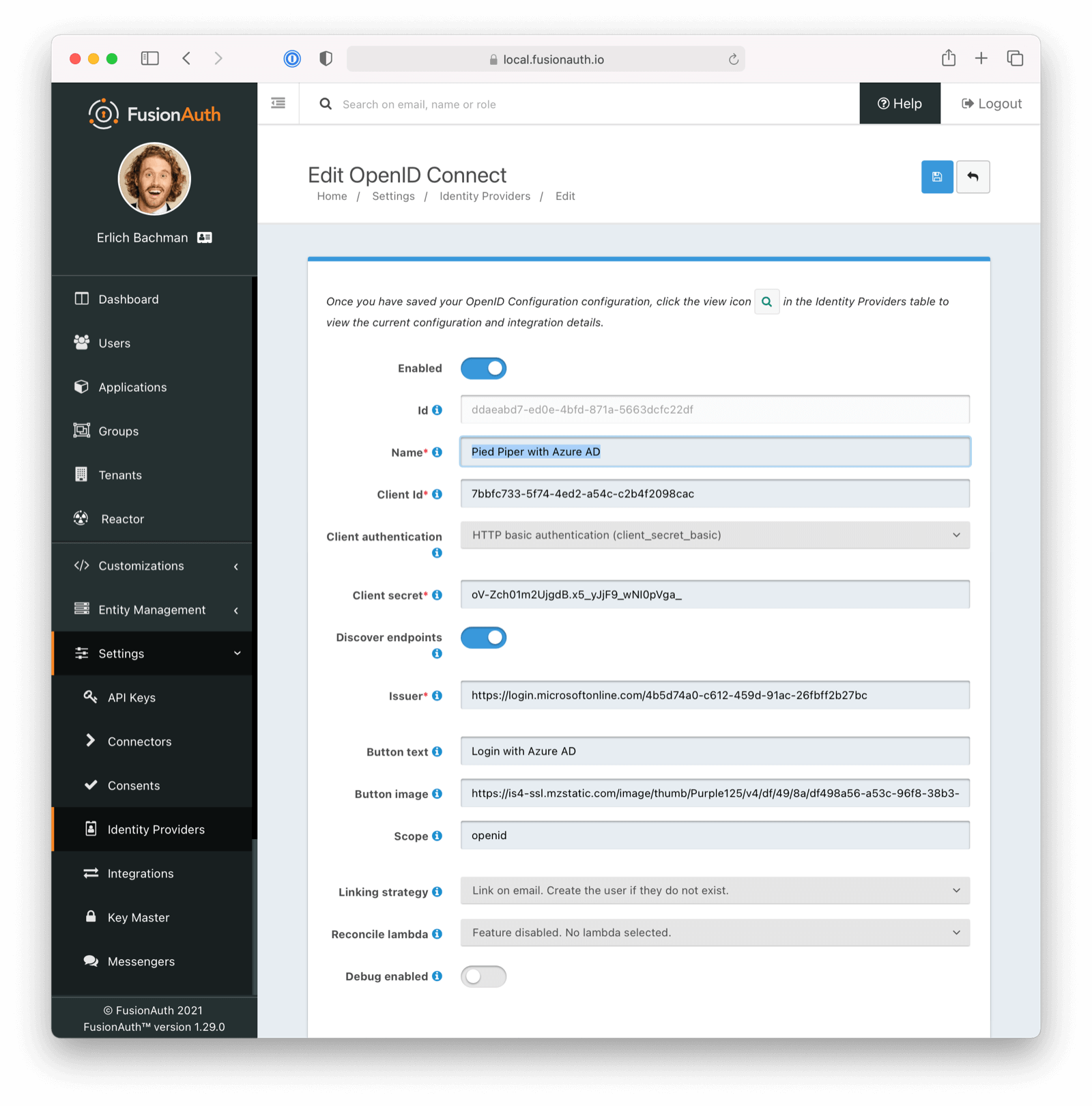

FusionAuth Azure AD IdP Configuration

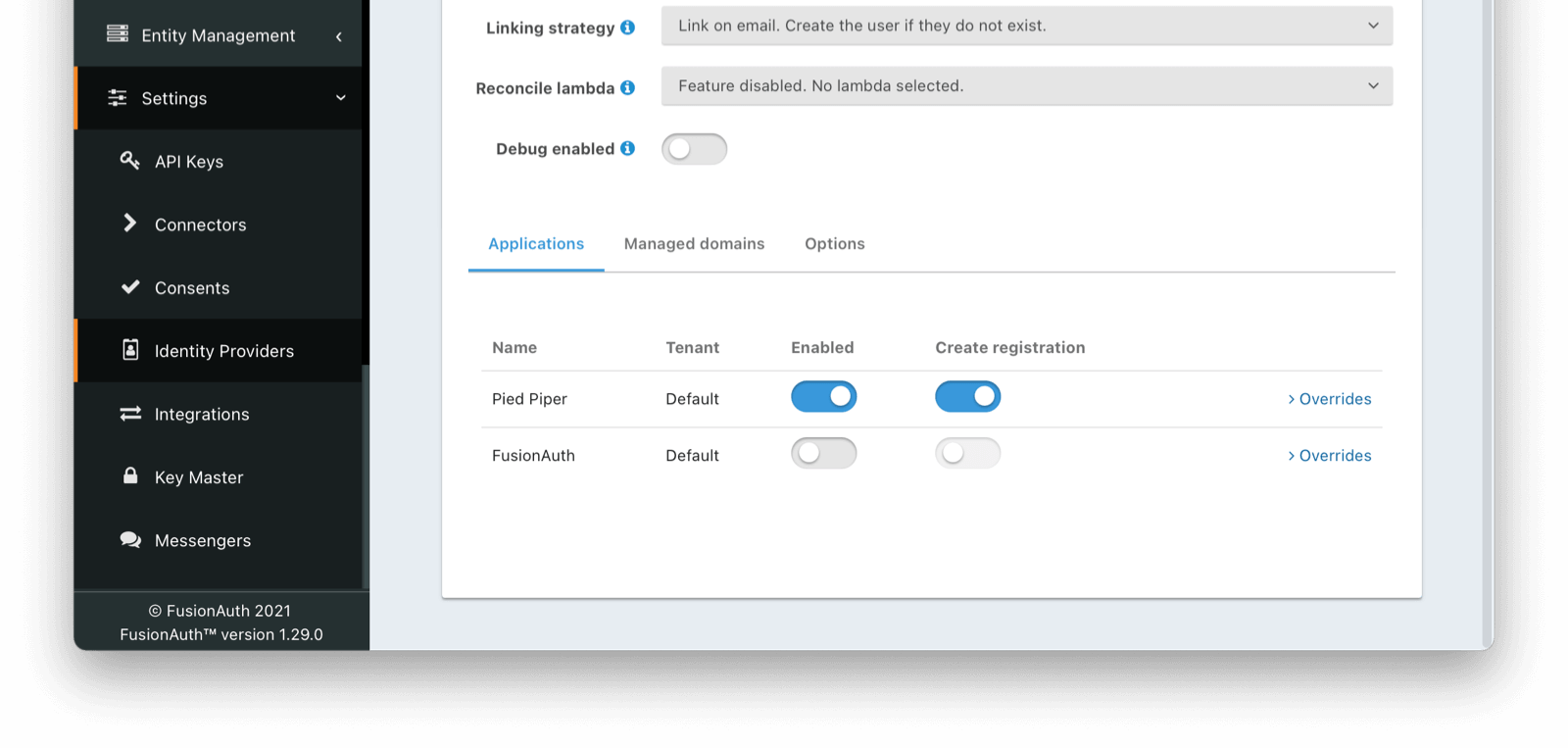

Scroll down and make sure you enable this Identity Provider for your application. In the following screenshot you will see that we have enabled this login provider for the Pied Piper application and enabled Create registration.

FusionAuth Azure AD IdP Configuration

That’s it, now the Login with Azure AD button will show up on the login page of our Pied Piper application.

Form Fields

Client Idrequired
The unique client identifier obtained from Azure. See Azure - Register An App Quickstart Guide.
Client secretrequired
The client secret obtained from Azure and used to authenticate the request. See Azure - Register An App Quickstart Guide.
Button text
The text to be displayed in the button on the login form. This value is defaulted to Login with Azure but it may be modified to your preference.
Linking strategyDefaults to Link on email. Create the user if they do not exist
The linking strategy for the Azure provider. See Linking Strategies for more.
Reconcile lambda
A lambda maps custom claims returned from Azure to the FusionAuth User or Registration. To create or configure a lambda, navigate to Customizations -> Lambdas. See the lambda documentation for more.
Debug enabledDefaults to false
Enable debug to create event log entries during the user login process. This will assist you in debugging integration issues.
