OpenID Connect

Overview

Adding a Login button for a third-party OpenID Connect provider to FusionAuth is simple. This guide will walk you through the steps necessary to enable an OpenID Connect login provider.

We also provide specific examples for configuring OpenID connect with some providers whose implementation requires unique configuration. If you’d like us to provide additional examples, please open a request on GitHub.

• Configure OpenID Connect with Amazon Cognito
• Configure OpenID Connect with Azure Active Directory/Microsoft Entra ID
• Configure OpenID Connect with Discord
• Configure OpenID Connect with GitHub
• Configure OpenID Connect with Okta

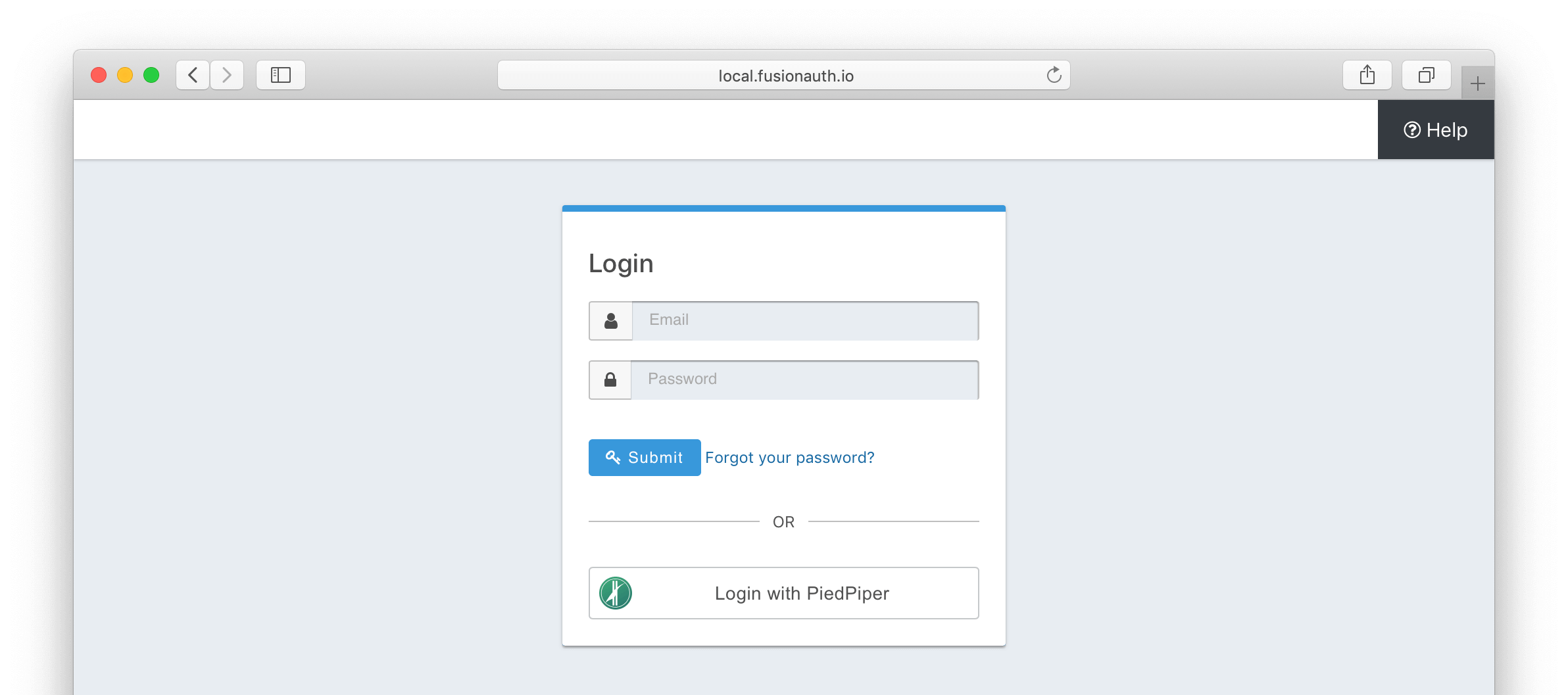

Once you have completed this configuration you will be able to enable the OpenID Connect login button for one or more FusionAuth Applications. Below is an example login page with an OpenID Connect Identity Provider enabled for PiedPiper.

Create an OpenID Connect Identity Provider

To create an Identity Provider navigate to Settings -> Identity Providers and click Add provider and select OpenID Connect from the dialog.

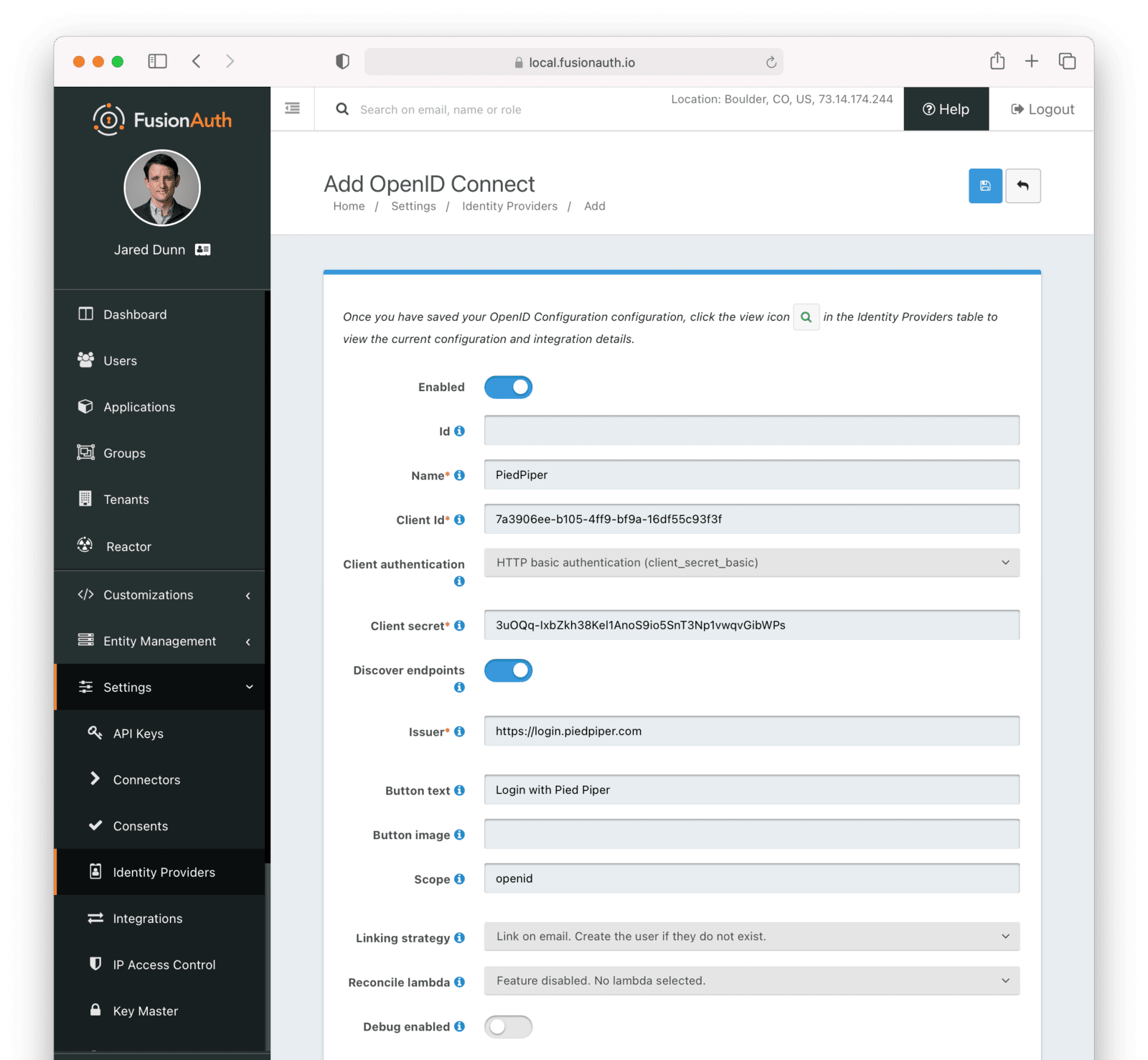

This will take you to the Add OpenID Connect screen, and you’ll fill out the required fields. If you do not know the Client Id and Client secret for this provider, you will need to contact the owner of the OpenID Connect provider.

If your OpenID Connect provider has implemented a well-known configuration endpoint, FusionAuth will be able to discover the necessary endpoints when you provide the URL to the provider in the Issuer field. For example, if you enter https://login.piedpiper.com in the Issuer field, FusionAuth will attempt to make a request to https://login.piedpiper.com/.well-known/openid-configuration to retrieve additional configuration. Alternatively you may provide fully qualified URLs for each of the required endpoints, to do this, toggle off the Discover endpoints switch and you will be shown three required fields.

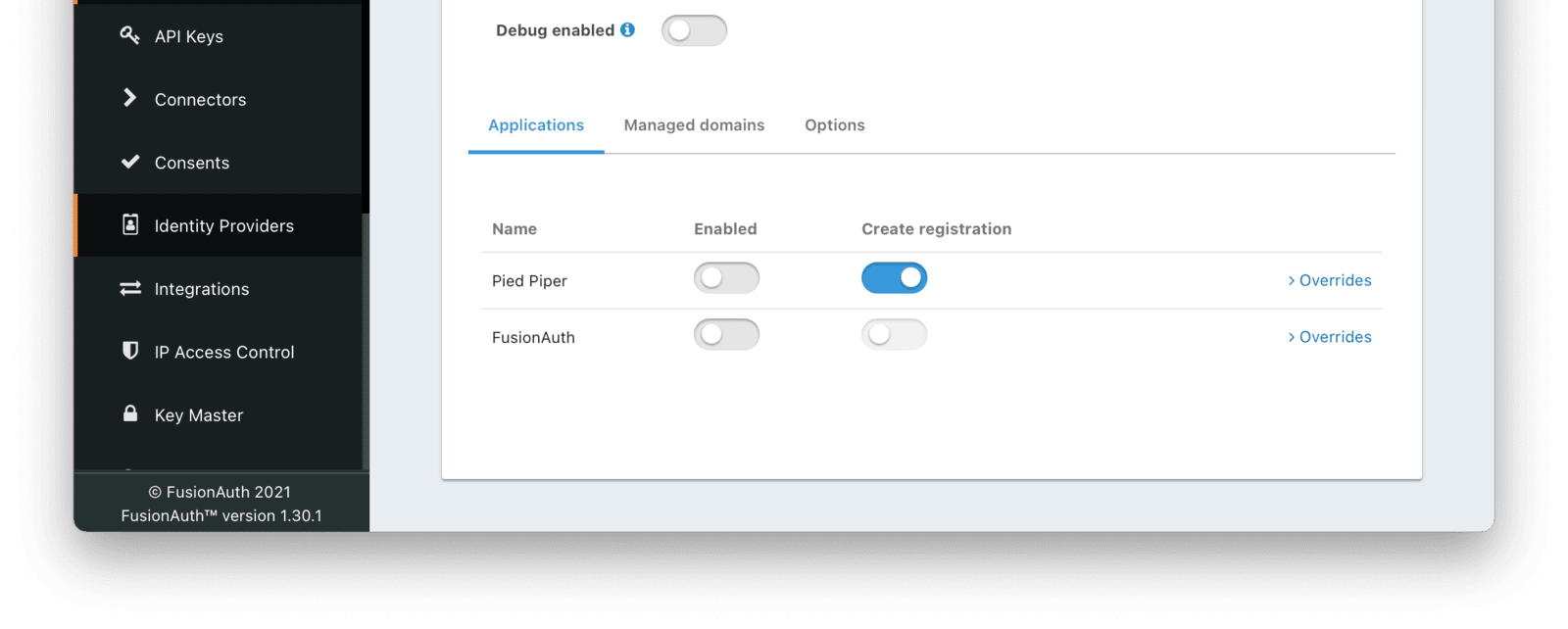

To enable this identity provider for an application, find your application name in the Applications configuration section at the bottom of this panel. You will always see the FusionAuth application, this application represents the FusionAuth user interface. If you wish to be able to log into FusionAuth with this provider you may enable this application.

In the following screenshot you will see that we have enabled this login provider for the Pied Piper application and enabled Create registration. Enabling create registration means that a user does not need to be manually registered for the application prior to using this login provider.

For example, when a new user attempts to log into Pied Piper using this identity provider, if their user does not exist in FusionAuth it will be created dynamically, and if the Create registration toggle has been enabled, the user will also be registered for Pied Piper and assigned any default roles assigned by the application.

If you do not wish to automatically provision a user for this Application when logging in with PiedPiper, leave Create registration off and you will need to manually register a user for this application before they may complete login with this provider.

That’s it, now the Login with PiedPiper button will show up on the login page.

Form Fields

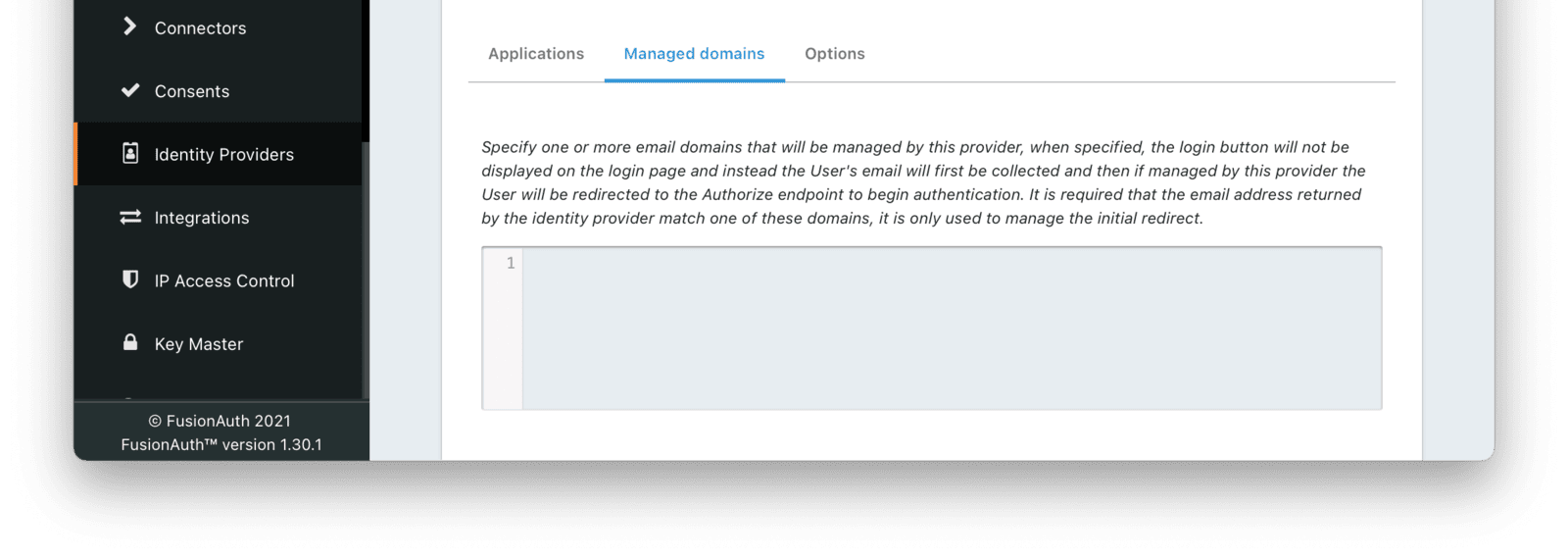

Managed Domains

Form Fields

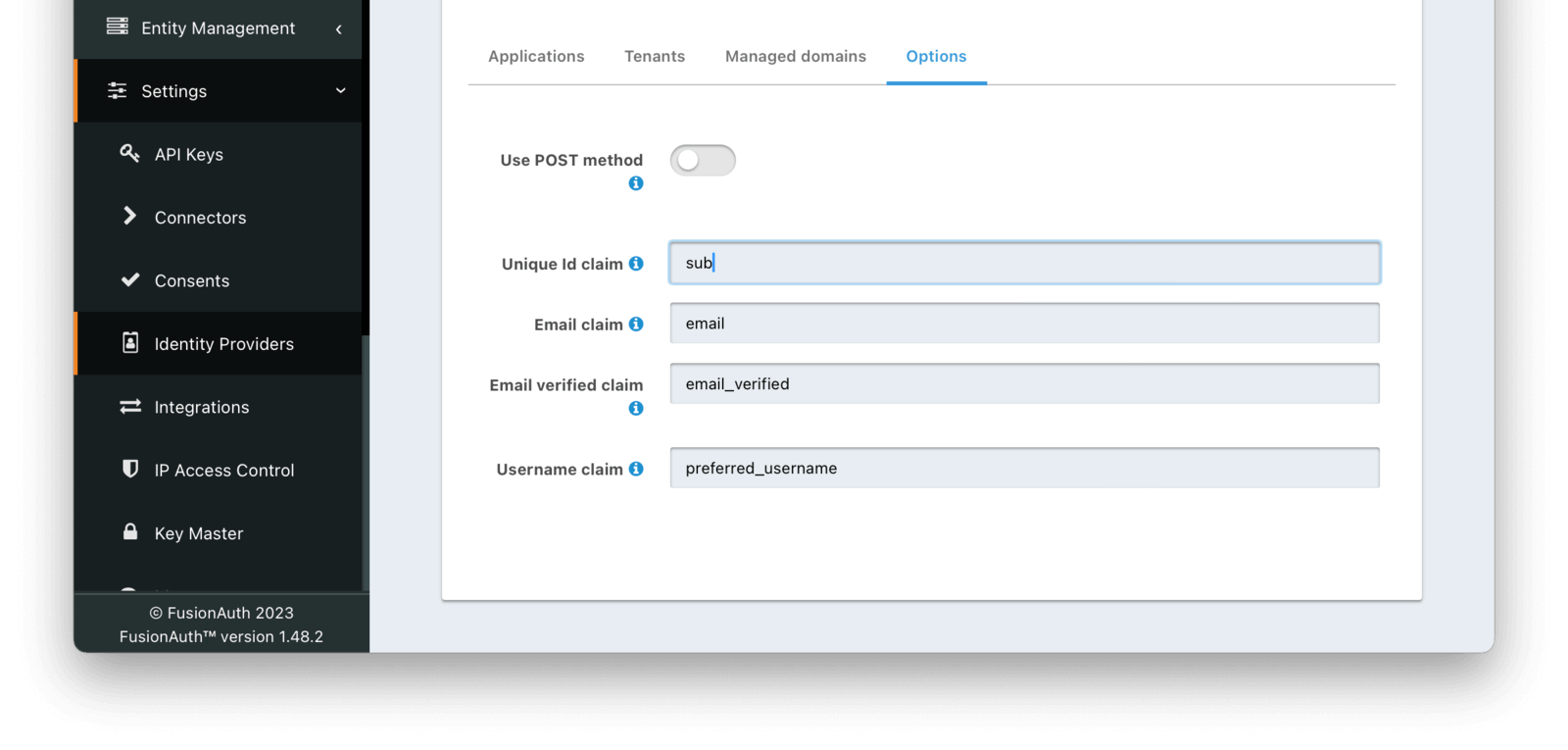

Options

Form Fields

Redirect URLs

When configuring an OpenID Connect identity provider, you’ll need to provide a redirect URL. This is the URL to which the identity provider will send a successful request. From there, FusionAuth will process the request, run the configured lambda, if any, and log the user into FusionAuth. From there, the redirect URL of the application will be sent the authorization code, to exchange for a token. There are, therefore, two redirect URLs in this scenario:

• The application redirect URL, which catches the Authorization Code from FusionAuth and exchanges it for a token. This is a custom route that you write, and so you control the URL. This redirect will be present in any application integrating with FusionAuth whether or not you are using the OpenID Connect identity provider. Learn more about the Authorization Code grant.
• The FusionAuth redirect URL, which handles the response from the OpenID Connect identity provider. This will always have the path /oauth2/callback. If your FusionAuth server is running at login.pipedpiper.com, the FusionAuth redirect URL will be https://login.pipedpiper.com/oauth2/callback.

Here is the request flow through an OpenID Connect login where the application is Pied Piper, the authorization server is FusionAuth, and the remote IdP is Azure Active Directory/Microsoft Entra ID.

OIDC Flow with FusionAuth and Azure AD/Microsoft Entra ID.

Proof Key for Code Exchange

Proof Key for Code Exchange, more commonly referred to as PKCE (pronounced pixy) is an extension to the Authorization Code grant. This extension is intended to help secure the code exchange workflow utilized by this OpenID Connect configuration.

This extension is used by default on all OpenID Connect IdP configurations, and it cannot be disabled. The use of this extension is backwards compatible with identity providers that either do not require or support PKCE.

FusionAuth will pass along the required PKCE request parameters to the OpenID Connect identity provider and if the provider supports PKCE, the extension will be utilized, and if it is not supported it will be ignored.

Troubleshooting

The first steps to troubleshooting any OIDC connection are:

• Double check all your configuration, including making sure that there are no errant spaces.
• Turn on debugging and view the event log entries during a typical login flow.

User info as JWT

The OIDC specification allows a client to request the userinfo response in various formats:

• JSON
• Signed JWT
• Encrypted/nested JWT

FusionAuth supports the JSON format only. If you are trying to set up an OIDC integration and see an error message like:

Request to the [https://example.com/userinfo] endpoint failed. Status code [200].
Exception encountered.com.inversoft.rest.JSONException : Message: Failed to parse the HTTP response as JSON. Actual HTTP response body:
eyJoa...

This means that the OIDC endpoint is sending back the userinfo data as a JWT. Please review your client registration with the OIDC endpoint administrators to ensure userinfo data is sent back as JSON.

Unable to login

A common pattern is to set up OIDC as the login method for the FusionAuth application. This lets you keep all your users in the OIDC system, and have FusionAuth delegate auth decisions to it. However, if your Identity Provider isn’t configured correctly, you can end up in a dead end, unable to log in. This might happen if the following occurs:

• You set up OIDC as the authentication method for your FusionAuth admin application.
• You set the Managed domains to your domain. For example, example.com.
• All added users have the same example.com domain.
• You accidentally misconfigure OIDC and break authentication.
• Then you log out of the FusionAuth administrative user interface.

You won’t be able to log in to the FusionAuth admin application to correct the misconfiguration. You’ve locked down the FusionAuth admin application so that only users with example.com email domains can access it, but because of the misconfiguration, there is no account with a valid OIDC login.

This is a problem, but not an insurmountable one. Your options depend on when you discover the issue. If you are beginning your OIDC configuration, you can avoid this scenario. Follow these steps:

• Don’t set any value of Managed domains before you have tested the OIDC configuration.
• Test authentication in a different or incognito browser window, ensuring that an admin user account is always accessible to modify configuration.
• Add an admin user account with a domain not in the Managed domains setting. Ensure this user is registered with the FusionAuth admin application and has the admin role.
• Set up an API key. Navigate to Settings -> API Keys to do so and make sure it has privileges to create users and registrations. This will open up options in the future to reset settings without using the administrative user interface.

If you are currently locked out of your FusionAuth application, you have fewer options:

• If you have a known username and password that are not delegated to OIDC (perhaps the initial account created when you set up FusionAuth) proceed to the FusionAuth admin login page. Append &showPasswordField=true to the end of the login URL. This will force the UI to show the password field.
• If you have an API key with appropriate privileges, you can modify the configuration without using the administrative user interface. Add an admin user with a different email domain and sign into the admin interface to correct your OIDC configuration. Here’s how you might do so (3c219e58-ed0e-4b18-ad48-f4f92793ae32 is the FusionAuth application Id):

Adding a New Admin User With a Different Domain

curl -XPOST -H "Authorization: $API_KEY" -H "Content-Type: application/json" \
-d '{
	"user": {
		"email": "user@differentdomain.com",
		"password": "password"
	},
	"registration": {
		"applicationId": "3c219e58-ed0e-4b18-ad48-f4f92793ae32",
		"roles": ["admin"]
	}
}' \
https://login.piedpiper.com/api/user/registration

If you have neither an API key nor a known user, you can restore from a database backup, modify the database directly if you have access, or re-install FusionAuth.
