Offboard: Leaving FusionAuth

Introduction

This guide explains how to export user data from FusionAuth to prepare it for migration to another system. This information may be useful for you to:

  • Export user data to a data warehouse for analysis.
  • Assess how easy migrating from FusionAuth would be before signing up.
  • Switch from FusionAuth to another authentication service.

You can follow this guide to try some examples of exporting data. You will start a new FusionAuth instance with a sample user and run SQL queries. If you already use FusionAuth, you can export your data from your existing instance.

To learn about authentication migration in general, please see the generic migration guide and the migration overview. The principles in these guides that explain how to migrate to FusionAuth can also be used to migrate from FusionAuth to another service. It is important to understand the different migration strategies, especially online and offline migrations (static versus dynamic migrations).

FusionAuth might also have a specific guide on migrating from the service you want to migrate to, listed here. If so, check the steps in the guide to see if there are any important differences between the two services that you need to plan for.

For integrating FusionAuth data with complementary services, such as using a monitoring service like Prometheus or Elastic, please see those guides.

You should use different techniques, like webhooks and APIs, for sending data to such services, instead of the bulk database export discussed in this guide.

Start A Sample Instance Of FusionAuth

To run a new self-hosted FusionAuth instance with Docker:

  • Install Docker if you don’t have it on your machine.
  • Clone the FusionAuth example Docker Compose repository to your computer.
  • In your terminal, navigate to the light directory in the repository.
  • Run docker compose up to start FusionAuth.
  • Browse to http://localhost:9011 to check that FusionAuth is running. You can log in with admin@example.com and password.
  • Note the database connection details in the docker-compose.yml file and the hidden .env file.

Browse The Database

While the FusionAuth Java code is closed-source, your database data is always freely available to you, unadulterated. You should not edit the data manually and risk breaking your system, but reading the data is fine. You can browse your database using a free, cross-platform database IDE like DBeaver or Azure Data Studio(ADS). If you use ADS, install the PostgreSQL extension in the sidebar before creating a database connection.

If you use FusionAuth Cloud (the paid, cloud-hosted version of FusionAuth), please contact support to request a backup file of your database. Import the backup file you receive from FusionAuth into a PostgreSQL instance on your computer to explore the data and schema.

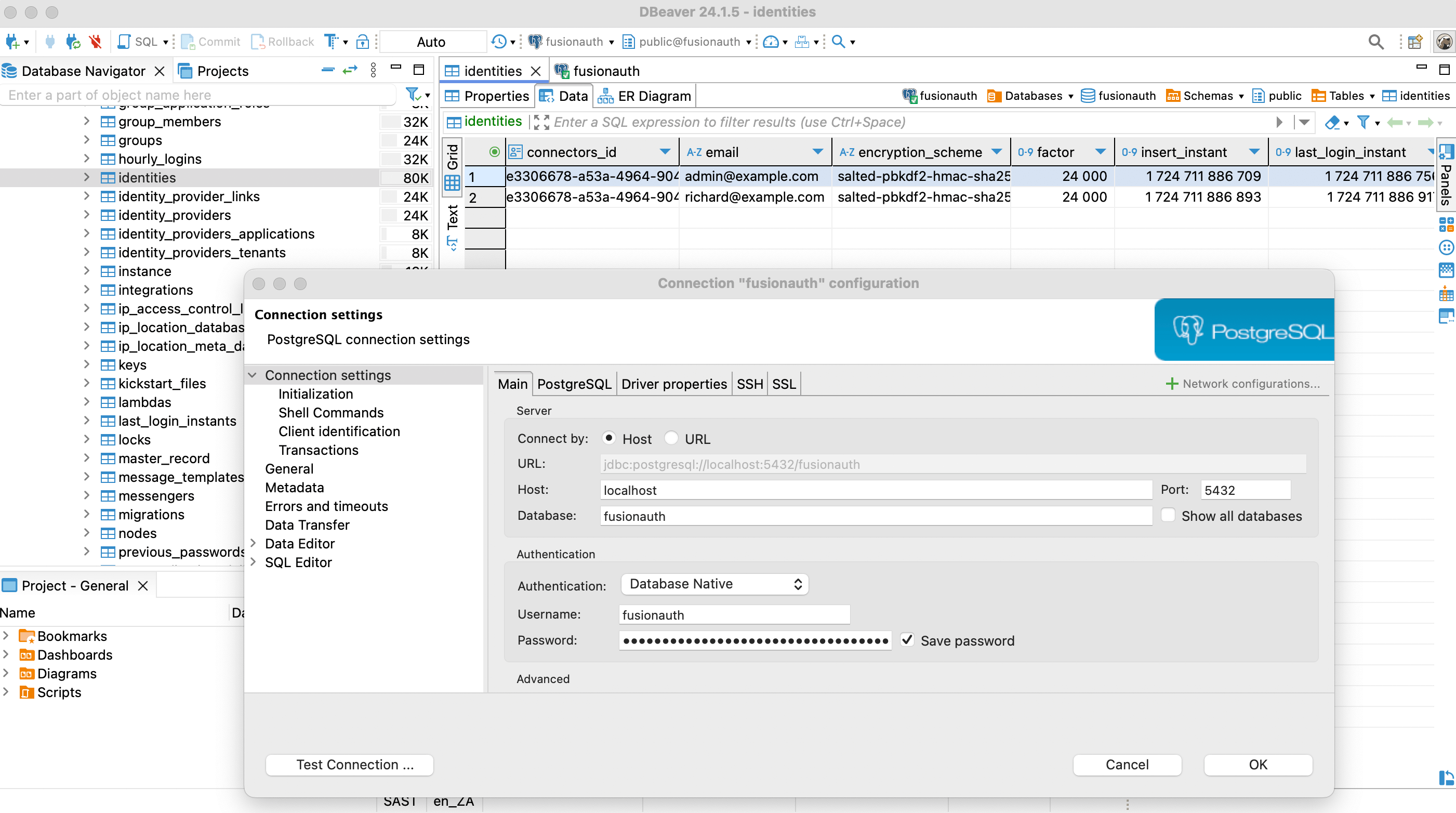

The screenshot below shows DBeaver connected to the FusionAuth PostgreSQL database from the example repository using a connection string with port 5432, database fusionauth, username fusionauth, and password hkaLBM3RVnyYeYeqE3WI1w2e4Avpy0Wd5O3s3. To connect to FusionAuth on a remote server, change the Host from localhost to your server name. The image shows the main user data table, identities.

Browse tables

Offline And Online Migrations

Now that you know how to access your data, you can write a database export script to extract the values you want and import them into your new authentication system. However, you need to consider new users and users that update their details after you have exported your database but before the users have joined your new system.

You have three strategy options:

  • Offline migration: Take the application offline. Migrate the user data to the new system. Switch the application from pointing to FusionAuth for authentication to the new authentication system. Bring the application online again. This process could take a few minutes to a few hours.
  • Online migration: Use webhooks and the FusionAuth API to migrate users individually from FusionAuth to the new system. As each user logs in, a webhook event fires, triggering a script you write to migrate the user’s data and mark them as using the new system for future logins instead of FusionAuth. This is a more complex approach than an offline migration.
  • Hybrid migration: Perform an offline migration without taking the application offline. Use webhooks to send any information that changes during the migration process to update the new system. This approach is called dual-write and involves updating changes to users in both FusionAuth and the new authentication service until FusionAuth is disabled.

An offline migration is the simplest to perform for most systems, but you need to warn users that the system will be offline for a period at a convenient time. You will need to use a form of online migration if your database is extensive or your application cannot afford to be offline.

Whichever option you choose, you will need to test the process thoroughly before running it against the live application.

What To Export?

FusionAuth does not have any dedicated documentation that explains the database schema. The schema is discussed briefly in this guide and most tables’ purposes should be clear from their column names. If you need help understanding something in particular, please ask the FusionAuth programmers on the Slack channel.

Some data types, like users, applications, and roles, are used in most authentication services. But some data is so specific to FusionAuth that there is no point in trying to migrate it with a script. This includes settings for webhooks, connectors, lambdas, and user actions. There is also no point in exporting logs like daily login counts and FusionAuth instance settings like themes, because your new authentication service won’t use them. You will need to manually reproduce actions and styles like these in whichever format the new service specifies.

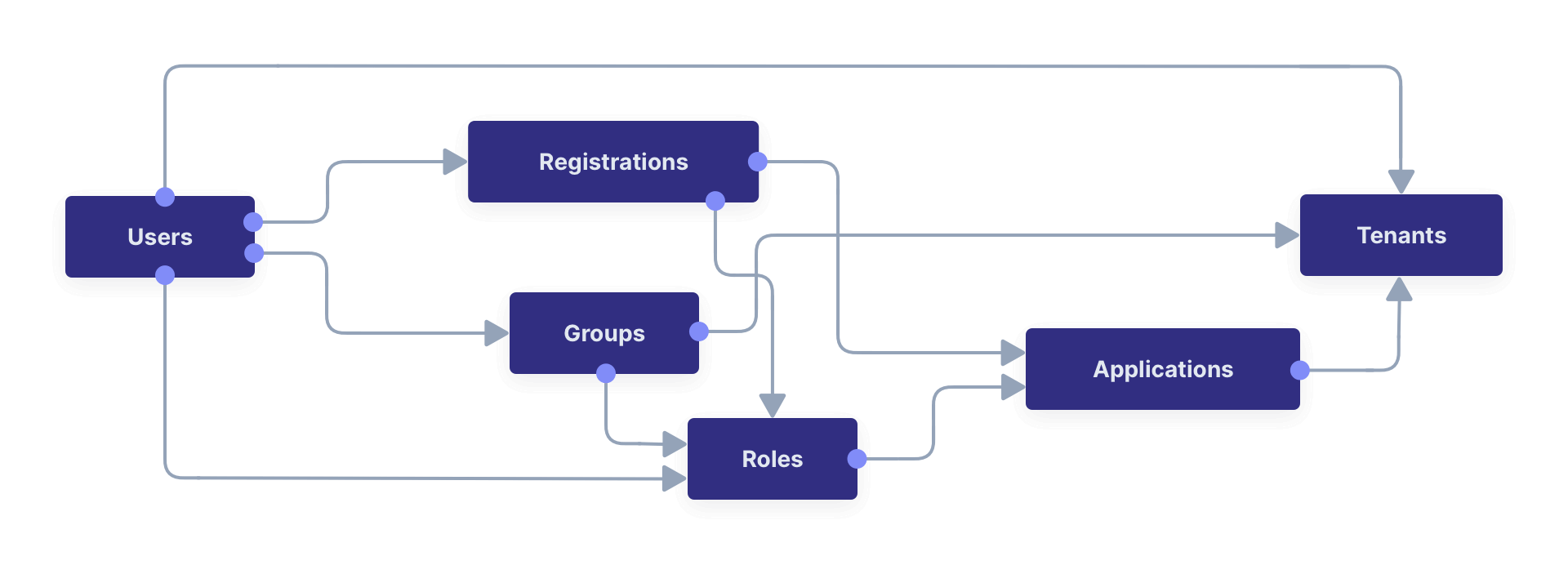

To understand the user-related data tables in the database, please read the FusionAuth core concepts guide before continuing. Below is a visual summary of the organization.

Users
Registrations
Applications
Roles
Groups
Tenants

In addition to the objects above, you may want to migrate identity providers like Google OAuth, user consents, and email templates.

Below is the full database diagram for the tables you need to export. Though it has more fields than the diagram above, it is the same design. (You can open the SVG in a new tab to zoom in.)

Database diagram

To browse the database diagram in DBeaver, you can download the ERD file here.

Here is the full list of FusionAuth database tables you should look at for export: application_roles, applications, consents, email_templates, group_application_roles, group_members, groups, identities, identity_provider_links, identity_providers, identity_providers_applications identity_providers_tenants, tenants, user_comments, user_consents, user_consents_email_plus, user_registrations, user_registrations_application_roles, users.

How To Migrate

There are dozens of alternative authentication services to FusionAuth. This guide provides general advice for migrating to any of them. Ultimately, migration is the process of copying data about users from a database in the FusionAuth format to the new system’s database in its format, mapping tables and columns appropriately. Each service allows you to import users (and sometimes other data) in different ways:

  • Direct database import through SQL statements — These services tend to be free or open-source. Examples include Keycloak, the Janssen project from Gluu, Authentic, and Authelia. While free services don’t have the funding to pay developers to write user-migration plugins, they allow you complete access to edit your database and insert any data you need. In these cases, you would write a SQL script against the FusionAuth database that generates a SQL script that is a set of INSERT statements that writes users to the target database.
  • API — Most services will also provide an API, allowing you to manage users from a terminal. Examples include AWS Cognito, Firebase, Keycloak, Gluu, Janssen, Auth0, Frontegg, Stytch, and authentik. Instead of writing SQL to generate SQL, write SQL to export a JSON or YAML file of users. Then write a script in bash, Python, or Node.js that loops through the file and calls the target service API to create a new user for each existing user.
  • Plugins — Some of the more powerful services provide dedicated import plugins that will import users for you, given a CSV or JSON file or a database connection. Examples include AWS Cognito, Auth0, and Frontegg. To use a plugin, you’ll need to write SQL to generate a file of users. Services that do this tend to have cloud-only offerings that don’t allow you direct access to the database.

From top to bottom, these options decrease in complexity but also decrease in customization. In other words, if you have direct database access, you can map more of your existing user data into the target system, but you also have more work to do and more chance of making database entries that cause errors in the service.

Example SQL

Let’s look at example SQL queries for the three migration approaches.

Consider exporting a list of users containing user Id, first name, email, password, hash, salt, and encryption scheme. As illustrated in the database diagram above, you need to join the users table on the identities table to find these fields.

Below is the SQL to get this data.

SELECT
	u.id, u.first_name,
	i.email, i.encryption_scheme, i.password, i.salt, i.factor
FROM
	identities AS i
	JOIN users AS u
		ON u.id = i.users_id

-- OUTPUT:

id | first_name| email | encryption_scheme | password | salt | factor

00000000-0000-0000-0000-111111111111 | Fred | richard@example.com |salted-pbkdf2-hmac-sha256|ULoj1fuENZ+QvRqoaOhZ2YX6vuI7uqi7pY0a1EcE32Q= |u8ikPE4m35czpQArp2lDLYDGpIIo+FC+wiNzCclLRbw= | 24000

00000000-0000-0000-0000-000000000001 | Dinesh | admin@example.com |salted-pbkdf2-hmac-sha256|VBSc35CHt/4udxuL+ctb+MY+inWUGr4gMvZSwhvJ8iI= |l5LWrb6/YBIR3USJTFdDHIGYBaDWvqN1uqSRGhDfQHM= | 24000

a58ebb5e-a207-4653-824c-b7f41a73c63c | Test | test@example.com |salted-pbkdf2-hmac-sha256|3JK/aB+MBHtFXvxCvoVqZ4cl5wTkiV843dwA/HKGKBM= |s1ElWordVlDuCjuy1rhHz5i2GPdGp9NcVCfx+jSFRic= | 24000

Direct Database Import Through SQL Statements

Assuming the database you’re writing to has a single table called user, you can change the SQL query to generate SQL insert queries using the format below.

SELECT format
(
	'INSERT INTO user (id, first_name, email, encryption_scheme, password, salt, factor) VALUES (%L, %L, %L, %L, %L, %L, %s);',
	u.id, u.first_name, i.email, i.encryption_scheme, i.password, i.salt, i.factor
)
FROM
	identities AS i
JOIN
	users AS u ON
	u.id = i.users_id;

-- OUTPUT:

format

INSERT INTO user (id, first_name, email, encryption_scheme, password, salt, factor) VALUES ('00000000-0000-0000-0000-111111111111', 'Fred', 'richard@example.com', 'salted-pbkdf2-hmac-sha256', 'ULoj1fuENZ+QvRqoaOhZ2YX6vuI7uqi7pY0a1EcE32Q=', 'u8ikPE4m35czpQArp2lDLYDGpIIo+FC+wiNzCclLRbw=', 24000);

INSERT INTO user (id, first_name, email, encryption_scheme, password, salt, factor) VALUES ('00000000-0000-0000-0000-000000000001', 'Dinesh', 'admin@example.com', 'salted-pbkdf2-hmac-sha256', 'VBSc35CHt/4udxuL+ctb+MY+inWUGr4gMvZSwhvJ8iI=',  'l5LWrb6/YBIR3USJTFdDHIGYBaDWvqN1uqSRGhDfQHM=', 24000);

INSERT INTO user (id, first_name, email, encryption_scheme, password, salt, factor) VALUES ('a58ebb5e-a207-4653-824c-b7f41a73c63c', 'Test', 'test@example.com', 'salted-pbkdf2-hmac-sha256', '3JK/aB+MBHtFXvxCvoVqZ4cl5wTkiV843dwA/HKGKBM=', 's1ElWordVlDuCjuy1rhHz5i2GPdGp9NcVCfx+jSFRic=', 24000);

Save the output to a SQL file, and then run the file on the new database.

API Or Plugins

To generate a JSON file to give to user-import plugins or loop through in code that calls the new service’s API, run the original SQL query from the start of this section. In the DBeaver query output, click Export data and follow the wizard, choosing JSON as the output format.

{
"SELECT \n\tu.id, u.first_name,\n\ti.email, i.encryption_scheme, i.password, i.salt, i.factor \nFROM \n\tidentities AS i\n\tJOIN users AS u \n\t\tON u.id = i.users_id": [
	{
		"id" : "00000000-0000-0000-0000-111111111111",
		"first_name" : "Fred",
		"email" : "richard@example.com",
		"encryption_scheme" : "salted-pbkdf2-hmac-sha256",
		"password" : "ULoj1fuENZ+QvRqoaOhZ2YX6vuI7uqi7pY0a1EcE32Q=",
		"salt" : "u8ikPE4m35czpQArp2lDLYDGpIIo+FC+wiNzCclLRbw=",
		"factor" : 24000
	},
	{
		"id" : "00000000-0000-0000-0000-000000000001",
		"first_name" : "Dinesh",
		"email" : "admin@example.com",
		"encryption_scheme" : "salted-pbkdf2-hmac-sha256",
		"password" : "VBSc35CHt\/4udxuL+ctb+MY+inWUGr4gMvZSwhvJ8iI=",
		"salt" : "l5LWrb6\/YBIR3USJTFdDHIGYBaDWvqN1uqSRGhDfQHM=",
		"factor" : 24000
	},
	{
		"id" : "a58ebb5e-a207-4653-824c-b7f41a73c63c",
		"first_name" : "Test",
		"email" : "test@example.com",
		"encryption_scheme" : "salted-pbkdf2-hmac-sha256",
		"password" : "3JK\/aB+MBHtFXvxCvoVqZ4cl5wTkiV843dwA\/HKGKBM=",
		"salt" : "s1ElWordVlDuCjuy1rhHz5i2GPdGp9NcVCfx+jSFRic=",
		"factor" : 24000
	}
]}

If you need to rename FusionAuth columns to columns in the new database, use SQL syntax, like SELECT u.first_name as name. Alternatively, you could do the mapping in the Python or Node.js code.

How To Handle Differing Password Hashing Algorithms

The biggest challenge in moving from one authentication service to another is how each service handles password hashing.

Passwords are not stored in plaintext in databases. Instead, each password is irreversibly hashed into a sequence of bytes. Sometimes the password is combined with random bytes, called a salt, before hashing. The salt must be kept with the hash. Many different algorithms hash passwords. Some algorithms include the salt in the same field as the hash.

By default, FusionAuth uses Salted PBKDF2 HMAC SHA-256. If the new service also uses this hash algorithm, you have no work to do. If the new service uses a different algorithm, you have two choices:

  • Do not migrate passwords. Require all your users to change their password before logging in using the forgot-password email mechanism. This requires little work from you, but is a poor user experience.
  • Set the hashing algorithm field for the user in the new service, if the service supports the algorithm. If the service doesn’t support the algorithm, it may support hashing extensions. This means that you can write your own code that implements the hashing algorithm to check the user’s password at login, and add the code to the service as an extension. For example, here’s how custom hashing works in FusionAuth. Check if your new service supports similar capabilities.

Many services provide the option to overwrite the hash and algorithm of the migrated user with the service’s default algorithm after first login. You should enable this, so all users are consistently stored.

Finally, be aware that FusionAuth users can have different hashing algorithms — don’t assume all users use PBKDF2, check the encryption_scheme field. This difference will occur only if FusionAuth users were migrated into the database from another system, or if a previous administrator configured FusionAuth to use a different algorithm than the default.

Social Logins Like Facebook And Google

Social logins are stored in the identity_provider_links table, which links identity_providers (like Google or Apple) with users. Generally, a user’s email address is retrieved from the identity providers, and the address is stored in the identities table.

If you are changing only your authentication gateway and the domain name for your application and the identity provider client Id and key remain the same, social logins should continue to work. At worst, users will be required to log in again with their Google account. This requires only a few clicks and is not a bad user experience, unlike requiring users to complete a forgot-password workflow.

Online Migration Techniques

If you cannot do a bulk migration and take your application offline, you need to know how to migrate individual users. FusionAuth provides two useful tools for this, webhooks and APIs.

It is possible to do a bulk migration using the users API instead of a database script, but it would be slower unless your database is small.

Online migration generally involves choosing relevant FusionAuth events, and using those to trigger a webhook that calls a web service you’ve written. The web service can then call the relevant API to get user data, and call the API of the authentication service you are migrating to, to update user data.

For example, you might do a bulk migration of some users into the target system, but continue using FusionAuth. If a user logs in to FusionAuth and updates their last name, you would want the “user update” event to fire and trigger a call to your web service. Your service could then call the GET /api/user/{userId} API and get the user’s new last name. Finally, the service would call the new gateway’s API to update the user, ensuring that user data remains synchronized between both databases until the final transition to the new gateway occurs.
