OpenID Connect with Cognito

Configure OpenID Connect with Cognito

Cognito users must have a public email address configured to link on email (see linking strategies for more on this). An approach that will work for all users is to link on username or create an anonymous link. Using these strategies ensures that the configured Cognito OIDC connection works for every user, no matter their Cognito privacy settings.

Once you have completed this configuration, you can have an OpenID Connect Login with Cognito button for one or more FusionAuth Applications.

Login with Cognito

Here's a diagram of the login flow between:

  • the user
  • your application
  • FusionAuth and
  • a remote identity provider such as Cognito
User/BrowserAppFusionAuthIdentityProviderUser Is Logged In And App Can ProceedDelivering Data And FunctionalityView Initial PageClick LoginRedirect To FusionAuth Authorization URLRequest Login PageReturn Login PageClicks On 'Login With Identity Provider'Redirect To Identity Provider Authorization URLEnter CredentialsValidate CredentialsRedirect To FusionAuth With Identity Provider Authorization CodeRequests Page, Has Identity Provider Authorization CodeExchange Authorization Code ForIdentity Provider TokenReturns Identity Provider TokenStores IdentityProvider Token, CallsLambda, Creates UserAnd Registrations (IfNeeded), GeneratesFusionAuth TokensRedirect To Redirect URI With FusionAuth Authorization CodeRequest Redirect URI, Has FusionAuthAuthorization CodeRequest FusionAuth TokensReturn FusionAuth TokensCreate Session OrOtherwise Log User InUser/BrowserAppFusionAuthIdentityProvider

Logging In Using Cognito

Although this looks complex, the user only sees a few screens, such as the FusionAuth login screen, the Cognito login screen, and your application.

These instructions are for the new Cognito interface. Make sure you are using the “new console” user interface option. Learn more.

Register a Cognito User Pool

If you’re interested in connecting to Cognito, it is likely that you already have a user pool set up that you’d want to connect to. We’re adding the steps to create a new user pool in this guide in the interest of completeness, or in case you would like to set up a test user pool. You can refer to the getting started with Cognito user pools documentation for additional reference.

You will first need to log in to AWS.

Once logged in, search for “Cognito” in the main search field, and select the “Cognito” service.

  • Choose the region you’d like the user pool to reside in from the top right region indicator dropdown.
  • Click “Create a user pool”.
  • Select the pool sign-in options for Step 1. In this example, we’ll use email.
  • Review the configurations for Step 2 up to Step 4 to make sure they conform to your needs.
  • Give the pool a name in Step 5.
  • Make sure the checkbox to use hosted authentication pages is checked.
  • Choose a domain for the user pool.

Creating a User Pool App Client With a New Pool

To enable FusionAuth to access the user pool, we need to set up an app client on Cognito. See Cognito: Configuring a user pool app client for additional reference.

To create the client, in your new user pool, under Initial app client on Step 5, set the app type to confidential.

  • Give the client a name. We’ve used FusionClient.
  • Set the Callback URL to <YOUR_FUSIONAUTH_URL>/oauth2/callback under Allowed callback URLs; for example https://auth.piedpiper.com/oauth2/callback.
  • Under “Authentication flows” in the Advanced app client settings make sure the ALLOW_USER_PASSWORD_AUTH auth flow is selected.
  • Check the box for your app name under Identity Providers .
  • Select Authorization code grant under OAuth 2.0 grant types .
  • Under OpenID Connect scopes select OpenID.
  • Review the attribute read and write permissions and then click “Next” to review the user pool configuration details.
  • Scroll down and click “Create user pool”.
  • Once the user pool is created, click on the user pool’s name and scroll to the “App clients and analytics” section.
  • Open the created app client and record both the Client ID and Client Secret, which can be revealed by toggling the “Show client secret” button.

The user pool and app client are now created.

Adding an App Client To an Existing Pool

The existing pool must have a Hosted UI domain available and the hosted authentication pages enabled.

Navigate to the App integration tab and go to the App client list section. Select Create app client.

  • Select the Confidential Client type.
  • Give the client a name. We’ve used FusionClient.
  • Under “Authentication flows” in the Advanced app client settings make sure the ALLOW_USER_PASSWORD_AUTH auth flow is selected.
  • In the Hosted UI settings section, set the Callback URL to <YOUR_FUSIONAUTH_URL>/oauth2/callback under Allowed callback URLs; for example https://auth.piedpiper.com/oauth2/callback.
  • Select Authorization code grant under OAuth 2.0 grant types .
  • Under OpenID Connect scopes select OpenID. You may select others.
  • Review the attribute read and write permissions and then click “Create app client”.

Next, you can open the created app client and record both the Client ID and Client Secret, which can be revealed by toggling the “Show client secret” button.

Adding a Test User

The next step in either case is adding a test user.

  • Open the user pool and under the Users tab, click “Create user”.
  • Create a user, filling out all the form fields. Make sure to record the email address and the password.
  • Click the “Create user” button.

Configure a New FusionAuth OpenID Connect Identity Provider

There is no pre-configured Identity Provider for Cognito in FusionAuth. The generic “OpenID” Identity Provider can be used though, as Cognito supports the standard OpenId Connect protocols.

Navigate to your FusionAuth instance. Select Settings from the sidebar and then Identity Providers.

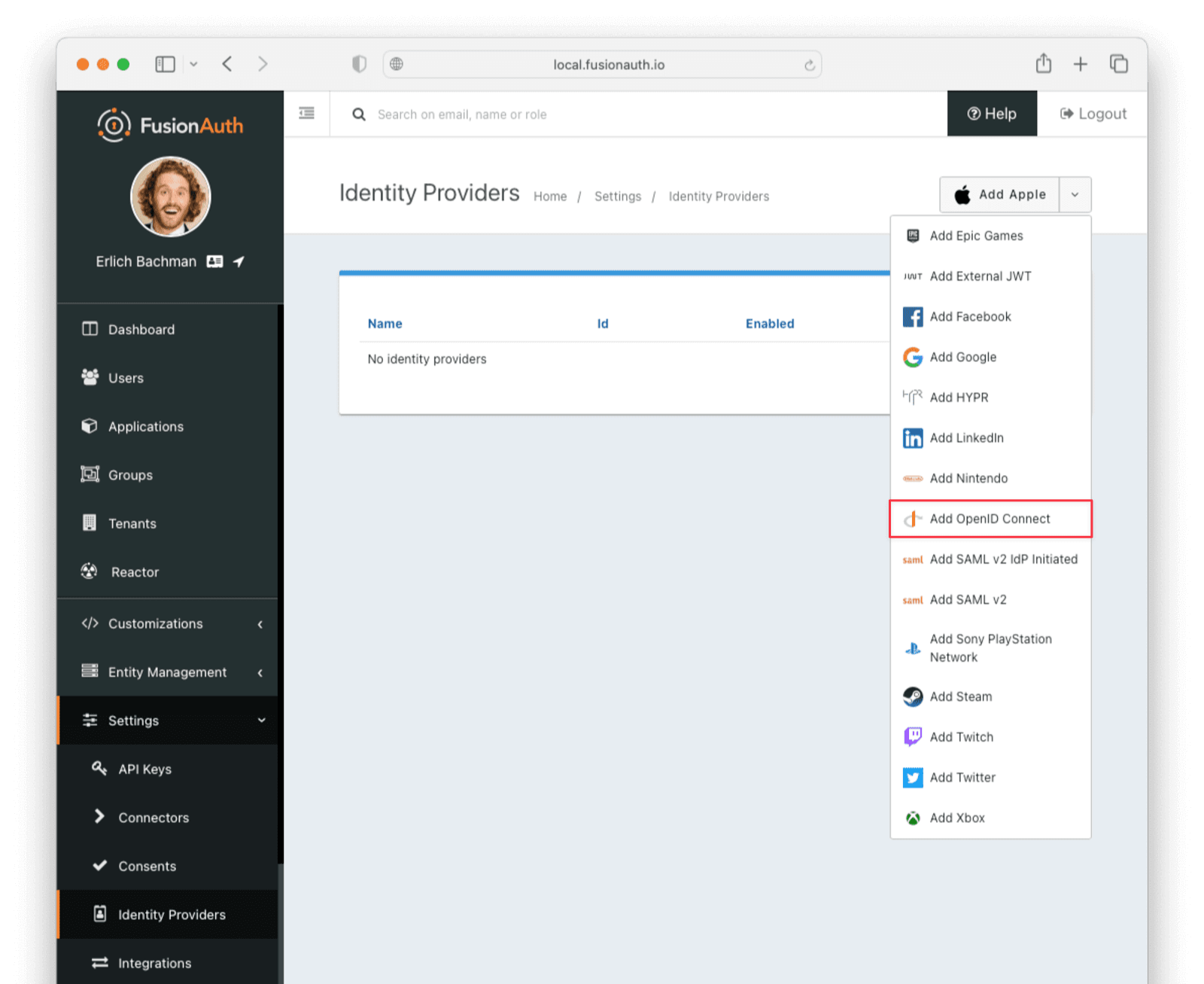

Select “Add OpenID Connect” from the “Add” dropdown at the top right of the page.

Create a new OpenID integration
  • Provide a Name , like Cognito.
  • Set Client Id to the App Client Id recorded when creating the app client on Cognito.
  • Select HTTP Basic Authentication for the Client Authentication field.
  • Set the Client secret to the app client secret recorded when creating the app client on Cognito.
  • Enable Discover endpoints
  • Use the following as the Issuer URL:

The Issuer URL

https://cognito-idp.<REGION>.amazonaws.com/<USER_POOL_ID>/

Replace <REGION> with the AWS region code, such as us-east-2, in which you created your Cognito user pool. This can be found by selecting the region indicator at the top right of the menu bar and recording the region code displayed alongside the region location.

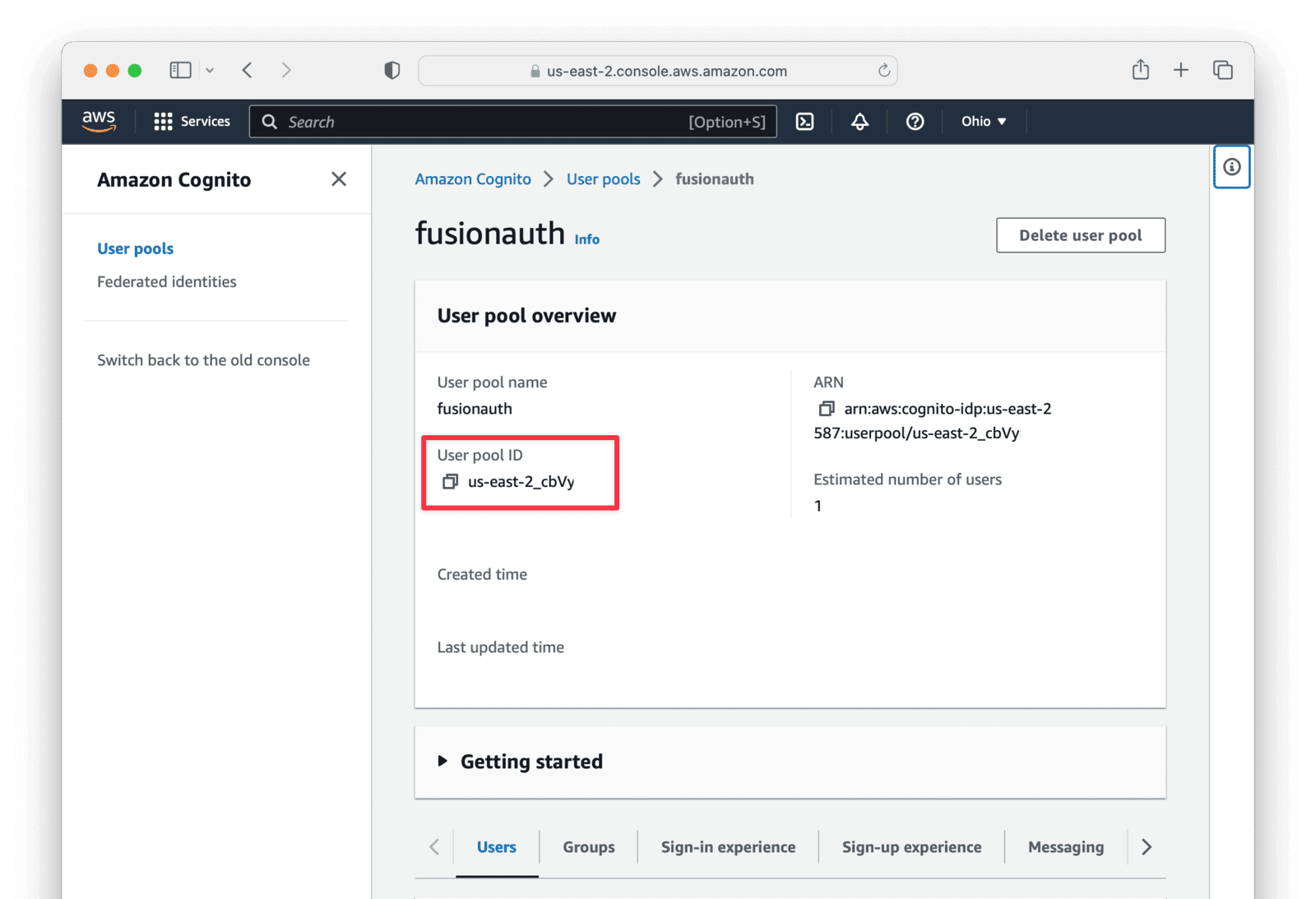

Replace <USER_POOL_ID with the Cognito user pool Id. You can find this by clicking on your user pool. This will be something like us-east-2_cbVy.

User Pool Id in Cognito

Set Button Text to Login with Cognito. You can also add a URL to a Cognito icon for the button icon if you wish.

Cognito users must have a public email address configured to link on email (see linking strategies for more on this). An approach that will work for all users is to link on username or create an anonymous link. Using these strategies ensures that the configured Cognito OIDC connection works for every user, no matter their Cognito privacy settings.

Set the Scope field to openid. Choose a Linking Strategy of Link on email. Create the user if they do not exist. This will create the user if they don’t exist. You may also choose a different linking strategy; see Linking Strategies for more options.

Choose No Lambda for the Reconcile Lambda field. If you want to examine or modify the response of the Cognito authentication event and modify the user based on that, you can create a lambda and assign it here.

Then, choose the applications for which you would like the Cognito sign-in to be available and enable them. You can also create a FusionAuth registration for each application on successful authentication.

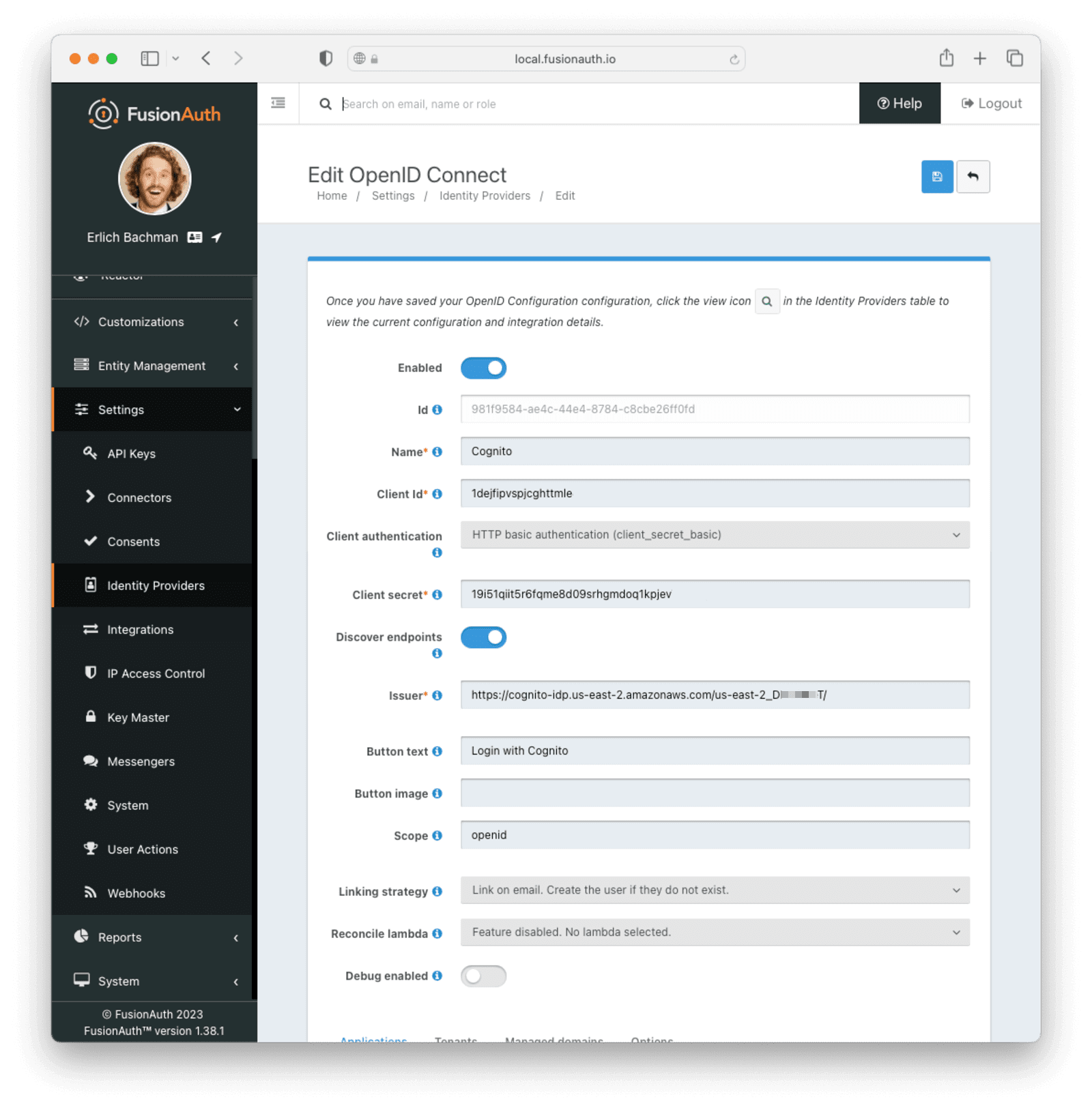

Once you are done, you should have a configuration similar to this:

penID integration settings

Testing the Login

To test, navigate to the applications page in FusionAuth. Click on the View icon (magnifying glass) next to the application you enabled Cognito login on and copy the OAuth IdP login URL address. Navigate to this address. You should see a Login with Cognito option on your app’s sign-in page:

Cognito log in on FusionAuth

Click the Login with Cognito button. Test logging in with the username and password for the test user added when creating the user pool on Cognito.

If it is all set up correctly, you should be redirected back to your app, successfully logged in. The user will be added to FusionAuth, and you can examine the Linked accounts section of the user details screen to see that the Cognito OIDC link was created.
